Hydraulic
Accumulator
Repair Kit
Engineered to resolve pressure loss in DSG7 DQ200 (OAM, OCW) transmissions — without replacing the mechatronic plate. A faster, more efficient repair, trusted across European and Asian markets.
DSG7 · DQ200
Fault Codes & Issues
Malfunction in the hydraulic pump.
Performance limitation due to insufficient pressure rise.
Performance limitation caused by pressure drop.
DSG7 · DQ200
Compatibility
Repair Kit for DSG7
DQ200 Gearboxes
The DSG7 Repair Kit is designed to resolve pressure-related issues in DSG7 gearboxes (0AM, 0CW DQ200) with a "dry clutch." Pressure loss typically arises from cracks or structural failures — loss of tightness — in the hydraulic accumulator area of the valve body. This kit eliminates the need to replace the entire mechatronics plate. Instead, the hydraulic accumulator is secured using the original screws for fastening the plate to the mechatronics body.
Kit Contents

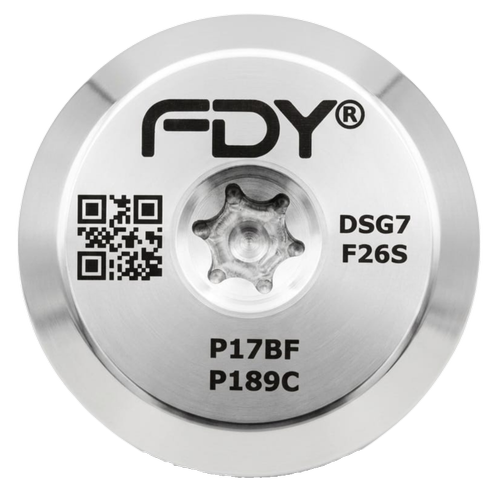

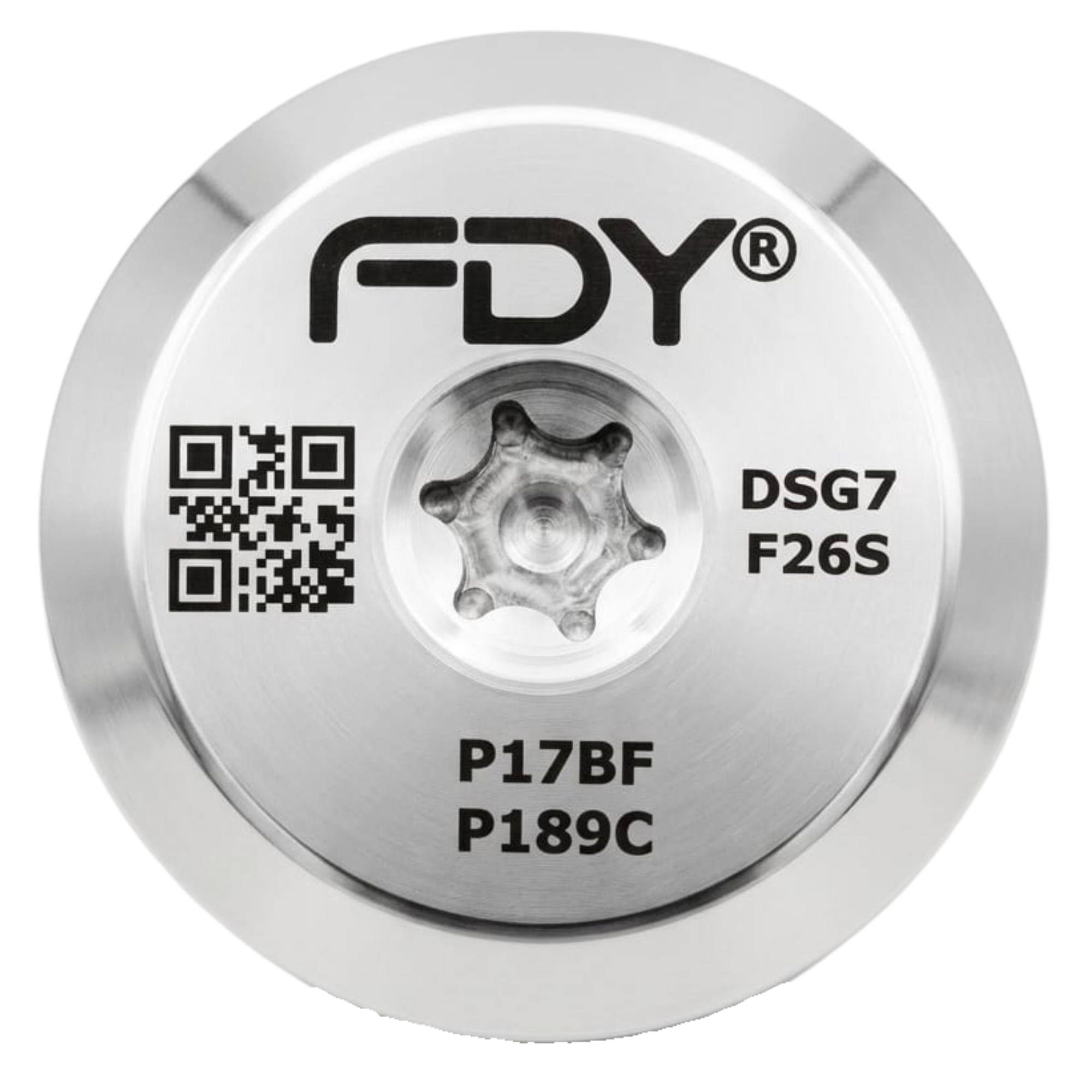

- Hydraulic Accumulator1 pc
- Cup (Adapter)1 pc
- O-rings (pre-installed on the Cup)2 pcs
Key Features
- Effectively resolves the "P17BF problem", a common error in DSG7 transmissions.
- Does not require replacement of the mechatronics plate, reducing repair complexity and cost.
- Designed for ease of installation with standard screws.
Advantages of the DQ200
DSG7 Repair Kit
01 / 07
Wide Compatibility
The kit is compatible with all types of automatic transmissions within the DSG7 DQ200 series.
02 / 07
Simplified Repair Process
- In most cases, repairs can be conducted without removing the mechatronics from the vehicle.
- Only the tray needs to be dismantled for replacement, saving significant time and effort.
03 / 07
Prevention of Recurring Issues
By using this kit, recurring cracks at the joint — as often seen when only the valve body plate is replaced — are effectively eliminated.
04 / 07
Fast, Simple & Reliable Installation
The kit offers a straightforward installation process, ensuring durability and reliability.
05 / 07
Restoration of Functionality
It allows the restoration of the mechatronics' performance, even in cases where the hydraulic accumulator's threaded fastener is damaged.
06 / 07
No Additional Modifications Required
Installation does not require any extra modifications or settings, maintaining the original system integrity.
07 / 07
Preservation of the Original Hydraulic Plate
There's no need to dismantle or replace the original hydraulic plate, reducing overall repair complexity and cost.

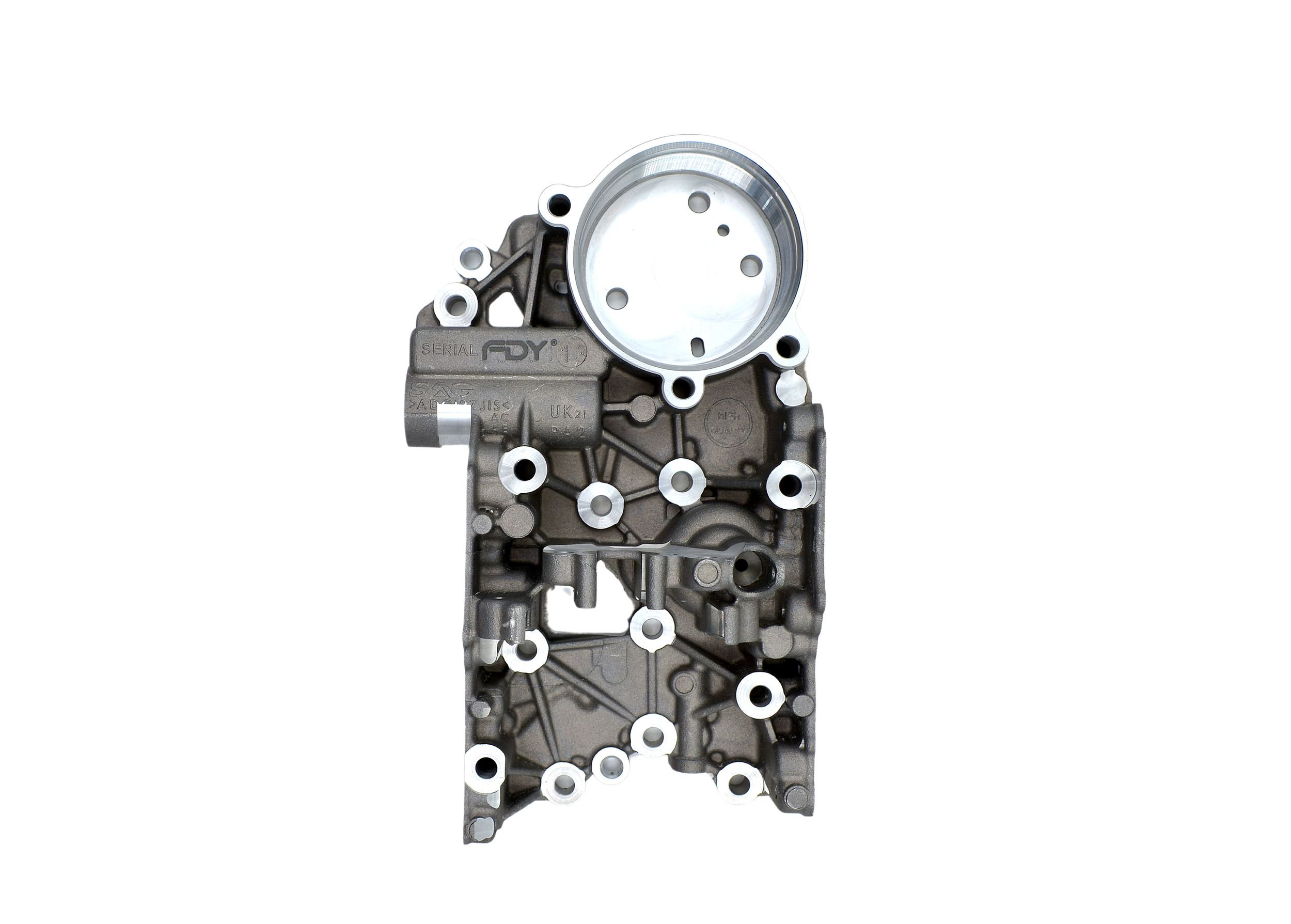

Accumulator Breakdown in
Mechatronics DSG7 DQ200
Advantages of the DSG7 Repair Kit
-
Complete Restoration
The repair kit fully restores the valve body without requiring full replacement.
-
On-Site Repairs
Mechatronics modules can often be repaired in a standard garage setting without removing the transmission.
-
No Disassembly Required
Unlike replacing the valve body plate, this repair doesn't involve full mechatronics disassembly.
-
Programming-Free Solution
Installation requires no reprogramming before or after use.
-
Reliable Design
The hydraulic accumulator attaches to the damaged housing and effectively restores the hydraulic system.
Principle of Operation
In the DSG7 transmission system, the hydraulic pump circulates oil through a filter to a hydraulic accumulator, which ensures consistent oil pressure when the pump is idle.
Cause of Breakdown
The thin walls at the attachment point of the hydraulic accumulator are prone to cracking. This structural weakness leads to:
- Pressure loss in the system.
- Failure of the mechatronics module.
Problems with Traditional Repairs
-
Valve Body Replacement
- A costly and labor-intensive solution.
- Does not guarantee prevention of future failures.
-
Use of Cheap Valve Body Alternatives
- Results in poor durability and increased risks of additional breakdowns.
Post-repair, the hydraulic system pressure is restored, ensuring the smooth and reliable operation of the DSG7 transmission. This makes the repair kit a cost-effective, efficient, and durable alternative to traditional repairs.
Malfunction Symptoms
for DSG7 DQ200
P17BF
VW 06079 · VAG 006079, 10902, 10903Hydraulic Pump Malfunction with Play Protection.
Performance issues related to pressure instability.
P189C
VW 06300 · VAG 006300Limited performance caused by insufficient pressure rise.
Reduced gearbox efficiency and sluggish operation.
P1895
Performance limitations due to pressure drop.
Noticeable power loss and transmission delays.
