FDY Black Box · Solenoid cleaning & testing
Small box.
Black box.
- 5 V & 12 V solenoids
- Android app control
- One button · 8 pins
®Why the Black Box
Small on the outside.
Mission-critical on the inside.
5 V or 12 V — it doesn't care
Any Android, anywhere
The end of the line
Built to be inherited
A weight off your shoulders
One button. Eight pins.
Top · engraved FDY enclosure
I/O end · push button + 8-pin connector
Spec sheet
- Solenoids
- 5 V & 12 V
- Control
- FDY app · Android
- Interface
- 8-pin connector
- Operation
- One push button
- Finish
- Matte black
- Life expectancy
- Heirloom
Capacity

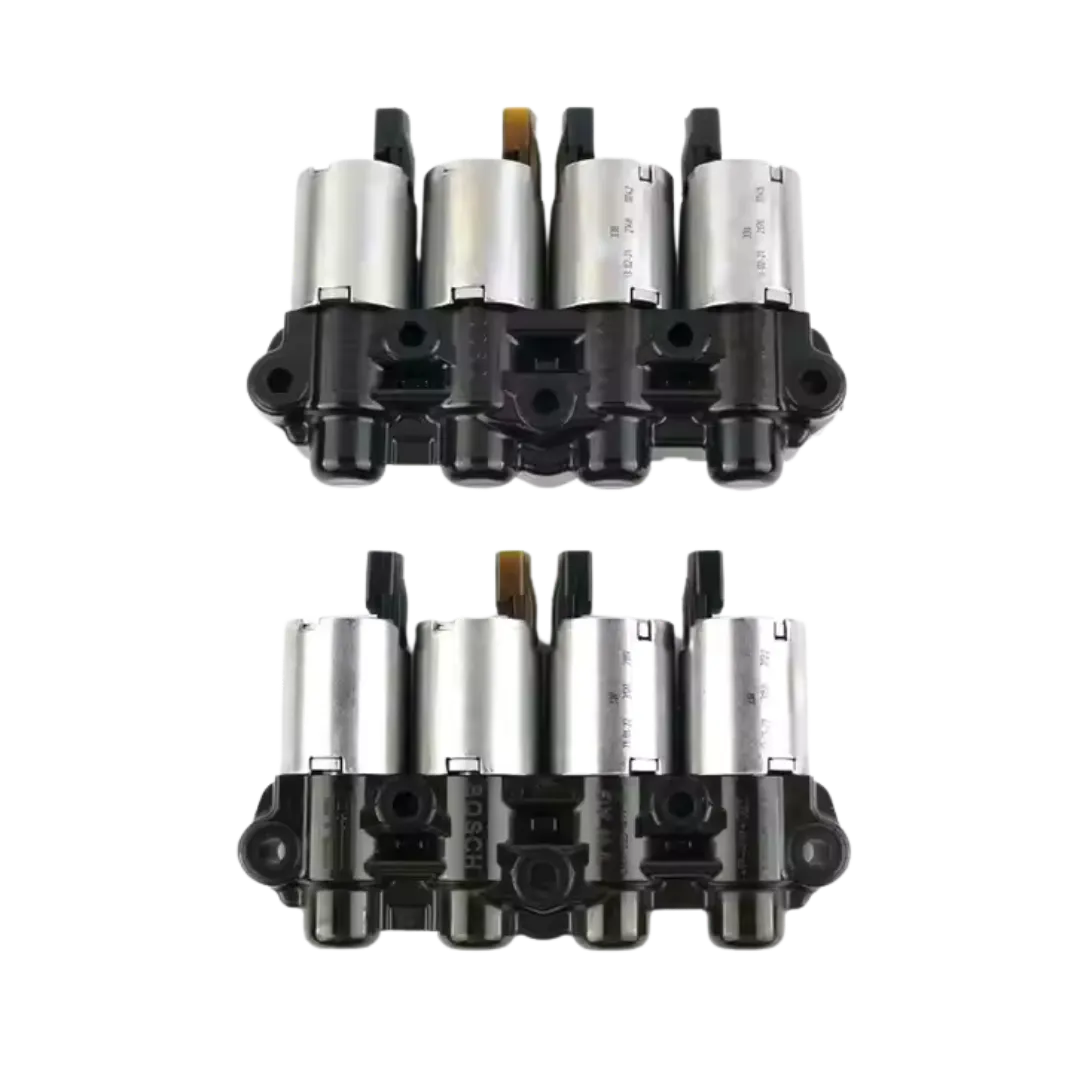

Testing & cleaning of 4 valves
Test and clean up to four solenoid valves at once. Quickly diagnose potential faults by comparing suspect valves with known-good ones.
Control
Easy & effective control
Activate or deactivate any of the four valve outputs individually — you decide which valve is tested on which output.
For each valve you see real-time current (mA) and internal resistance (Ω). A burnt coil, disconnection or short circuit is flagged immediately.
No more guessing whether a valve works — precise, real-time diagnostics prevent unnecessary valve replacements and save time and money.
CURRENT
mA
RESISTANCE
Ω
Valve cleaning
Deep cleaning with adjustable pulse frequency
Designed to loosen metal debris, oil residues and dirt particles that accumulate inside solenoid valves over time.
2 to 30 pulses per second
Gentle or aggressive
Smart safety system
Proportional valve test
Precision control, clear results
A dedicated test for proportional valves operating between 10% and 90% — not just fully open or closed.
These valves open and close gradually in response to varying signals, controlling flow, pressure or movement. They are driven at specific percentages so you can watch their behaviour at each stage.
- See if the valve operates smoothly and proportionally.
- Identify sticking points or delays across the range.
- Confirm the electrical response is accurate and healthy.
