DQ200 DSG 7 Fault Codes: The Complete List and What Each One Really Means

Connect a diagnostic tool to a Volkswagen, Audi, Seat or Škoda with a misbehaving 7-speed DSG and you may get one fault code — or twenty-five. Long lists look alarming, and they often lead to the wrong conclusion: that the sensors, the valves and the pump have all failed at once. They almost never have.

This guide lists the fault codes the DQ200 (0AM / 0CW) mechatronic stores most often, groups them by what they really point to, and shows how to read the pattern instead of the count.

How to read a DQ200 fault code

VW Group diagnostic tools show gearbox faults under address 0002 – transmission electronics, in a seven-character format such as P084000. The first five characters are the standard OBD code (P0840); the last two are a manufacturer sub-code. Each entry also has a fault type — electrical fault, implausible signal, undervoltage, overspeed — and a status: static (present now) or sporadic (seen before, not present now).

Save the complete list, with its freeze-frame data, before you clear anything. Many repairs go wrong because the evidence was deleted on the first visit.

The complete list

Power supply and control unit

Code	Meaning	Usually points to
P056200	Supply voltage too low	Battery, charging system, ground connections, mechatronic connector
P177F00	Hydraulic pump motor: undervoltage	The supply first; then the pump motor or the control unit
P160400	Control unit faulty	The electronic module of the mechatronic (J743)

Sensors

Code	Meaning	Usually points to
P084000	Hydraulic pressure sensor 1: electrical fault in circuit	The pressure sensor on the electronic module
P066600	Internal temperature sensor 1: electrical fault	The temperature sensor on the electronic module
P172F00, P173000, P173100, P173200	Gear actuator travel sensors 1–4: electrical fault	One code alone: that sensor. Several together: the electronic module
P173500, P173600	Clutch 1 and clutch 2 position sensors: electrical fault	The clutch travel sensors on the electronic module
P071500, P276500, P17C700	Gearbox input speed sensors 1, 2 and 3: electrical fault in circuit	The speed sensors and their circuits on the electronic module

Solenoid valves

Code	Meaning	Usually points to
P173E00, P173F00, P174A00, P174B00, P174C00, P174D00, P174E00	Sub-gearbox valve: electrical fault	One code alone: that solenoid valve or its contacts. Several together: the electronic module that drives them

Plausibility errors

Code	Meaning	Usually points to
P072600	Engine speed signal from the engine control unit: implausible	CAN data bus communication, or the gearbox control unit
P177900, P177A00	Gearbox input shaft 1 / input shaft 2: overspeed	Clutch slip, clutch adaptation, or incorrect speed readings
P172700	Driving direction implausible	Speed sensor signals or the control unit

Pressure faults such as P17BF, P189C and P1895 form a separate family: they usually point to a cracked pressure accumulator housing rather than to the electronics. See common DQ200 mechatronic error codes.

When 20 codes appear at once

Look at the list again: a pressure sensor, a temperature sensor, four travel sensors, two clutch sensors, three speed sensors and seven valves. On the DQ200 all of them are wired to the same place — the electronic module of the mechatronic unit (J743). If that module fails, or loses its supply, every circuit it monitors reports an electrical fault at the same moment, usually marked static.

That is why Volkswagen's technical bulletin for this complaint (TPI 2049002) groups all of these codes under one corrective action: replacing the mechatronic control unit — after its part number has been read and the gearbox has been checked for internal damage.

A practical rule of thumb for workshops:

One code, one circuit: suspect the component — a sensor, a solenoid valve, a connector.
Many electrical faults across different sensors and valves: suspect the supply first, then the electronic module.
Undervoltage codes in the list (P056200, P177F00): fix the battery, charging and ground connections first, then clear the memory and test again.
Pressure codes without electrical faults: suspect the hydraulics — accumulator housing, pump, internal leaks.

Confirm before you replace

Fault codes tell you where to look, not what to buy. A failing solenoid valve, a cracked accumulator housing and a dead electronic module can all trigger emergency mode, but their repair costs are very different. Before ordering a complete unit:

Bench-test the mechatronic with the FDY mechatronic test device: solenoid currents, pump run time, pressure build-up, leak test and a 1,000-shift simulation, with a printable report.
Test and clean individual solenoid valves with the FDY Black Box.
If the codes point to pressure loss, the reinforced accumulator repair kit fixes the root cause without a new mechatronic plate.

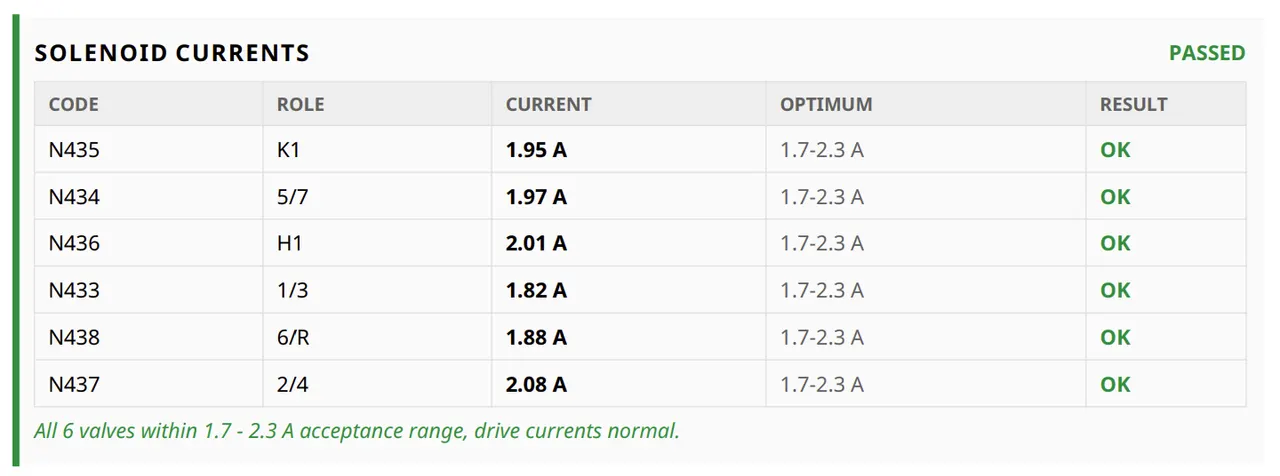

Solenoid current readings of a DQ200 mechatronic on the FDY test device, all within the acceptance range

Frequently asked questions

01What does P177F00 mean on a DSG?+

Undervoltage at the hydraulic pump motor of the mechatronic. Check the battery, the charging voltage and the ground connections first; if the supply is good, the pump motor or the control unit is the next suspect.

02What does P084000 mean on a DQ200?+

An electrical fault in the circuit of hydraulic pressure sensor 1. The sensor sits on the electronic module of the mechatronic, so when this code appears together with many other electrical faults, the module itself is the usual cause.

03What is fault code P160400 on a VW DSG?+

The gearbox control unit has detected an internal fault. Together with other static electrical faults it is a strong sign that the electronic module of the mechatronic needs repair or replacement.

04Why do I have so many DSG fault codes at the same time?+

Because the sensors and valves that report them share one electronic module and one power supply. A voltage drop or a module failure makes every circuit report a fault at once.

05Can I keep driving with these fault codes?+

Only as far as the nearest workshop. Most of these faults put the gearbox into emergency mode — read why your DSG only drives in odd or even gears.
